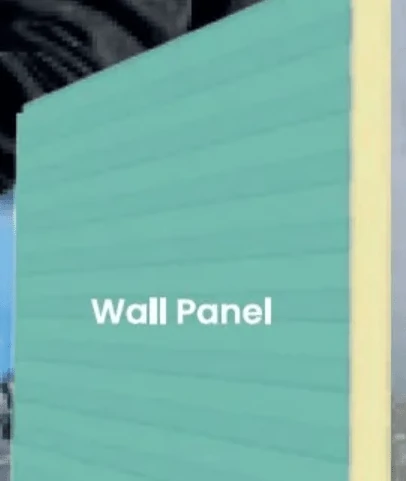

SAAP Wall Sandwich Panel
The factory-insulated foam metal panel (SAAP 35-/T) is a standard one-meter-wide panel designed for wall applications, featuring a flat surface on both the exterior and interior sides.The exterior and interior skins are manufactured from galvanized steel in accordance with ASTM A653 standards, with a hot-dip galvanized commercial-quality coating, Aluzinc AZ150 and aluminum options are available upon request.The core insulation consists of PIR (Polyisocyanurate) foam, with thermal performance (U-value) determined by the panel thickness.Both the exterior and interior steel skins are available with a variety of coating systems, including polyester, Kynar PVDF, and high-build urethane HF (150 microns), making them suitable for coastal and marine environments with a wide range of color options.The interior face is finished with a polyester coating in RAL 9002.
.png)

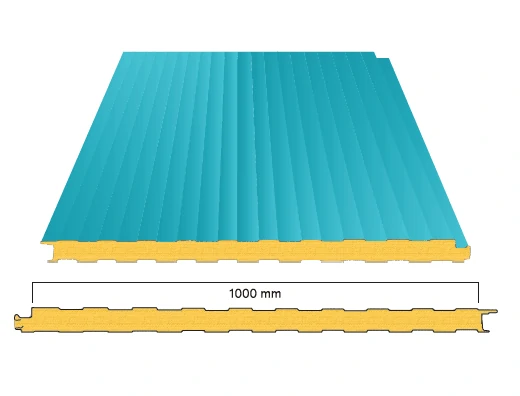

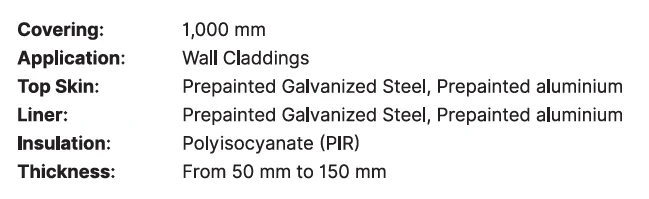

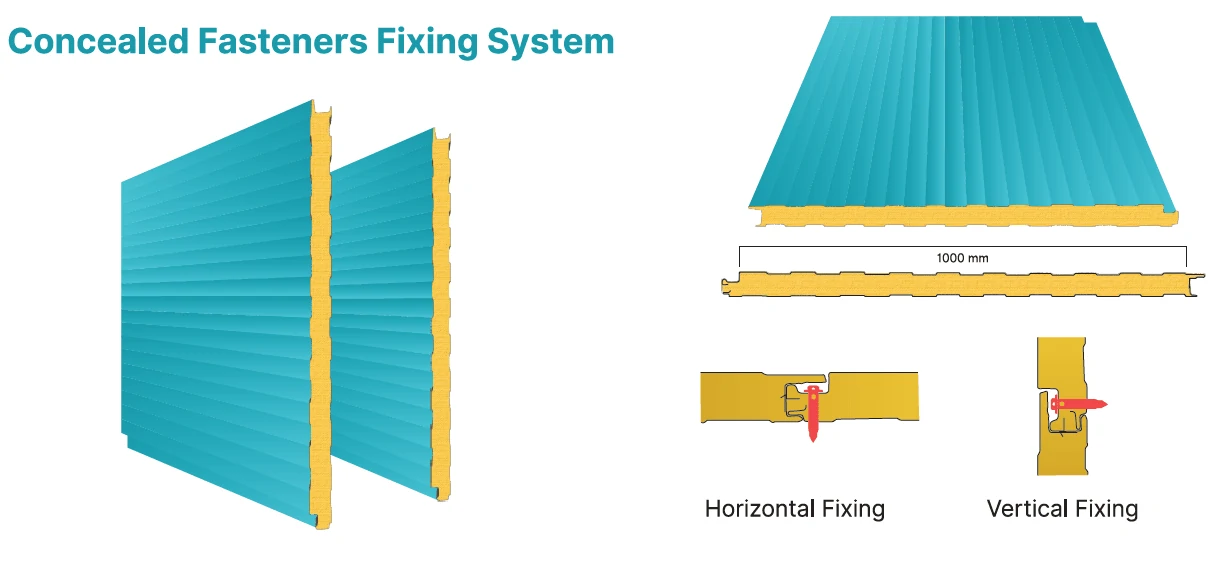

Concealed Fasteners
The wall panels are specifically designed for wall applications and feature a concealed joint system that effectively hides fastening elements.Their versatile design allows for both horizontal and vertical installation, providing flexibility during assembly and practical solutions for architects and designers.Available in micro-pressed or ribbed finishes, the panels also contribute to the aesthetic enhancement of wall surfaces.

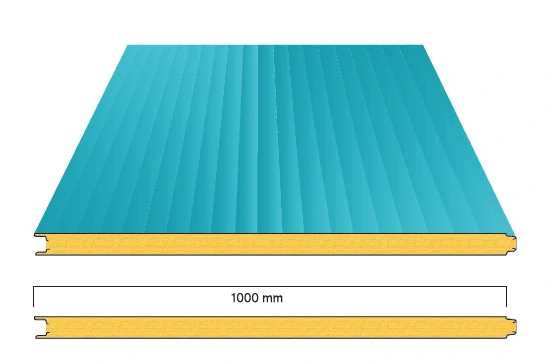

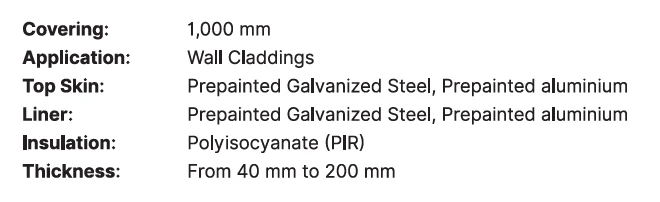

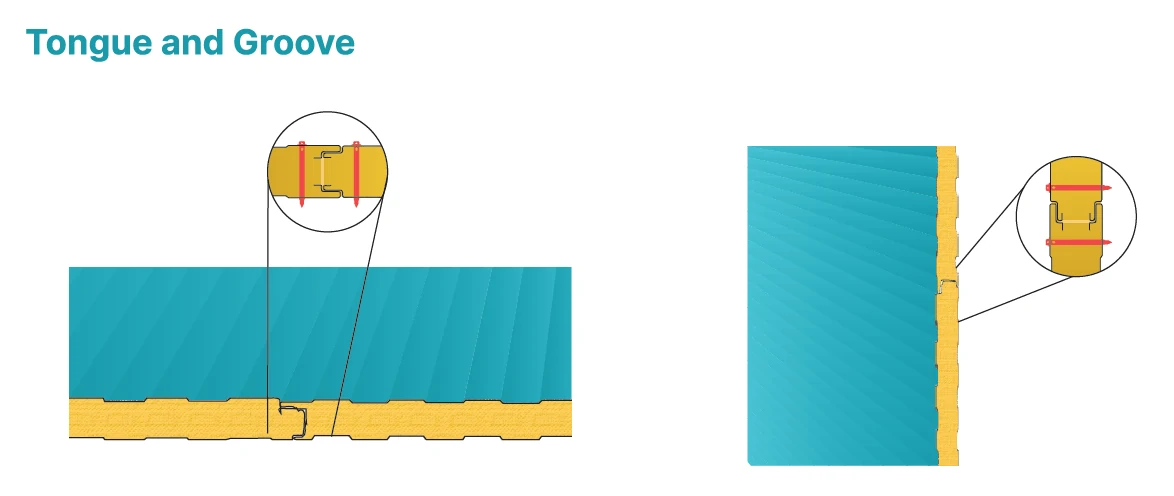

Tongue and Groove
Equipped with a durable double-sided tongue-and-groove locking system, these panels allow for quick and efficient assembly, making them an ideal solution for prefabricated buildings.Typically produced with a micro-pressed finish, they enhance the visual appeal of wall surfaces.Their versatility supports both horizontal and vertical installation, offering flexible assembly options and practical solutions for architects and designers.

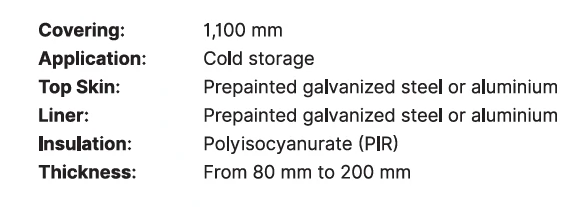

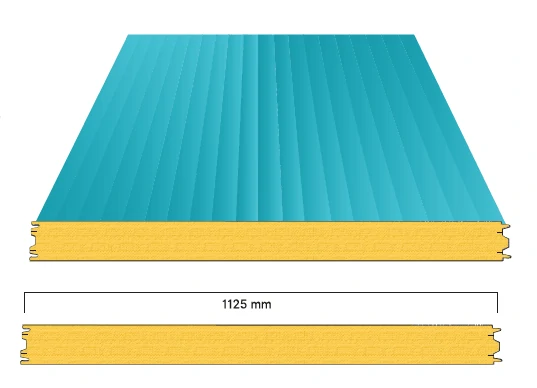

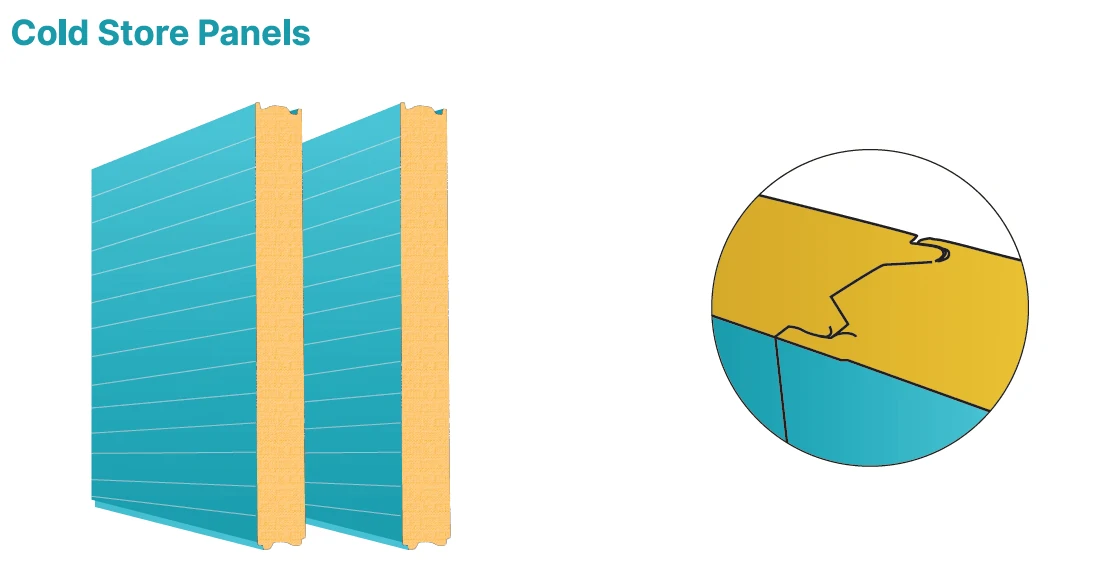

Slip Joint
The specially designed edges ensure perfect interlocking and airtight sealing between panels, making them ideal for cold storage room applications.Both the inner and outer skins feature a lightly ribbed finish, and the coating options include polyester, PVDF, silicone, plastisol, as well as antibacterial or food-safe finishes.
