Wall Sandwich Panel
The factory-insulated foam metal panel (SAAP 35/T) is a standard one-meter-wide panel designed for wall applications, featuring a flat surface on both the exterior and interior sides.
The exterior and interior skins are manufactured from galvanized steel in accordance with ASTM A653 standards, with a hot-dip galvanized commercial-quality coating. Aluzinc AZ150 and aluminum options are available upon request.
The core insulation consists of PIR (Polyisocyanurate) foam, with thermal performance (U-value) determined by the panel thickness.
Both the exterior and interior steel skins are available with a variety of coating systems, including polyester, Kynar PVDF, and high-build urethane HF (150 microns), making them suitable for coastal and marine environments with a wide range of color options.
The interior face is finished with a polyester coating in RAL 9002.
Smart Manufacturing
We utilize advanced, digitally controlled production lines to ensure consistent quality and high output across all panel types.
Certified Excellence
ISO 9001 and SASO EN14509 certified — guaranteeing top-tier quality, fire safety, and thermal performance in every panel.

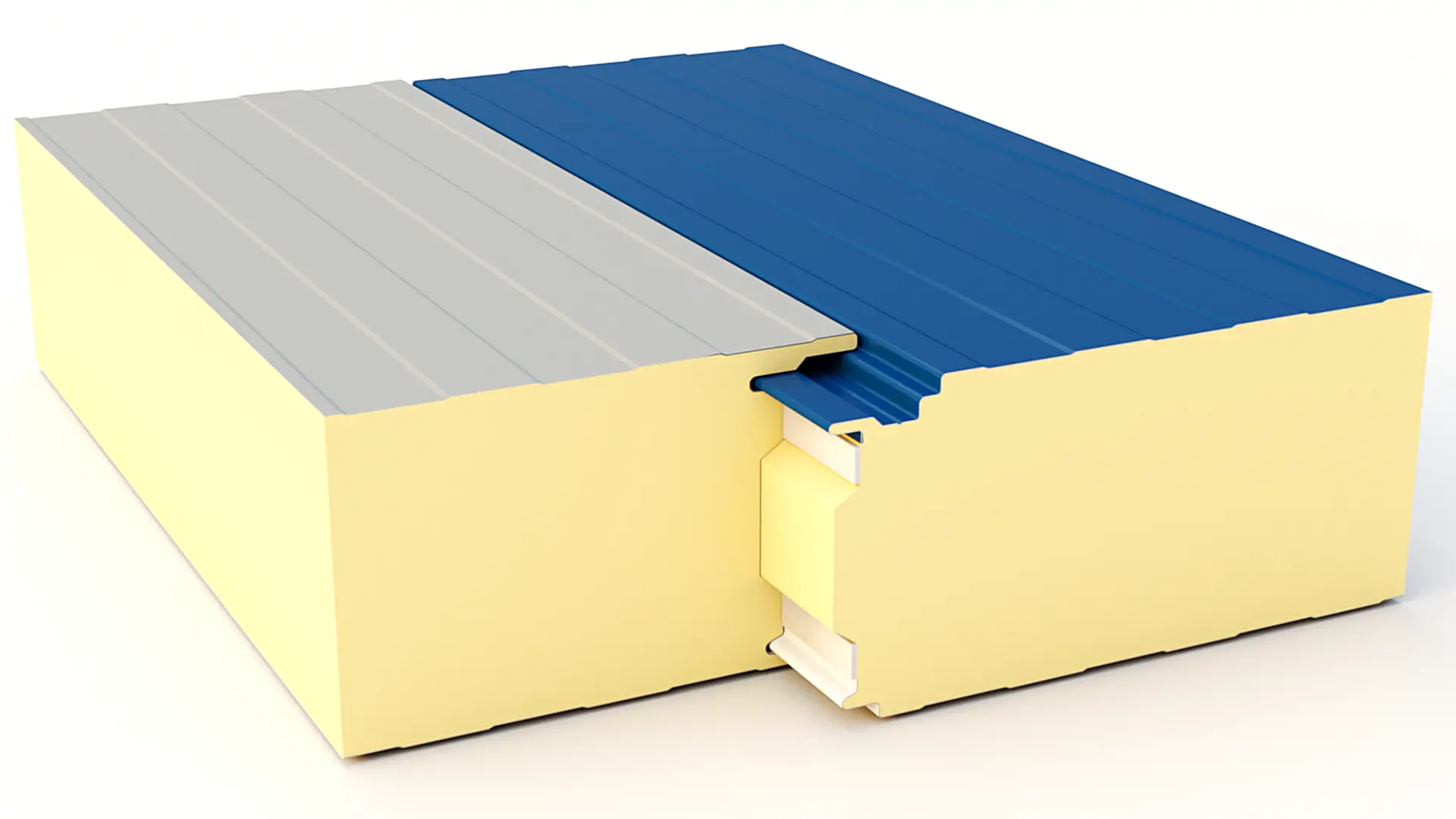

concealed fasteners
The factory insulated foam metal panels shall be a nominal one meter (1000 mm) wide panel (SAAP–35/T) and shall present a fluted surface externally and flat internally. The exterior & interior skins shall be formed of galvanized steel confirming to ASTM-A653, with hot dipped commercial quality galvanize coating & Aluminum upon request. Foam Type PIR foam having a U-value according to the thickness.
Exterior and interior skin shall be finished with various coating system, polyester, Kynar PVDF, Urethane high built Versacor HF (150 microns) suitable for projects at sea cost in color selection. Interior face finished with polyester coating in Ral 9002 color.
The wall panels are specifically designed for wall applications and feature a concealed joint system that effectively hides fastening elements.
Their versatile design allows for both horizontal and vertical installation, providing flexibility during assembly and practical solutions for architects and designers.
Available in micro-pressed or ribbed finishes, the panels also contribute to the aesthetic enhancement of wall surfaces.
Specifications

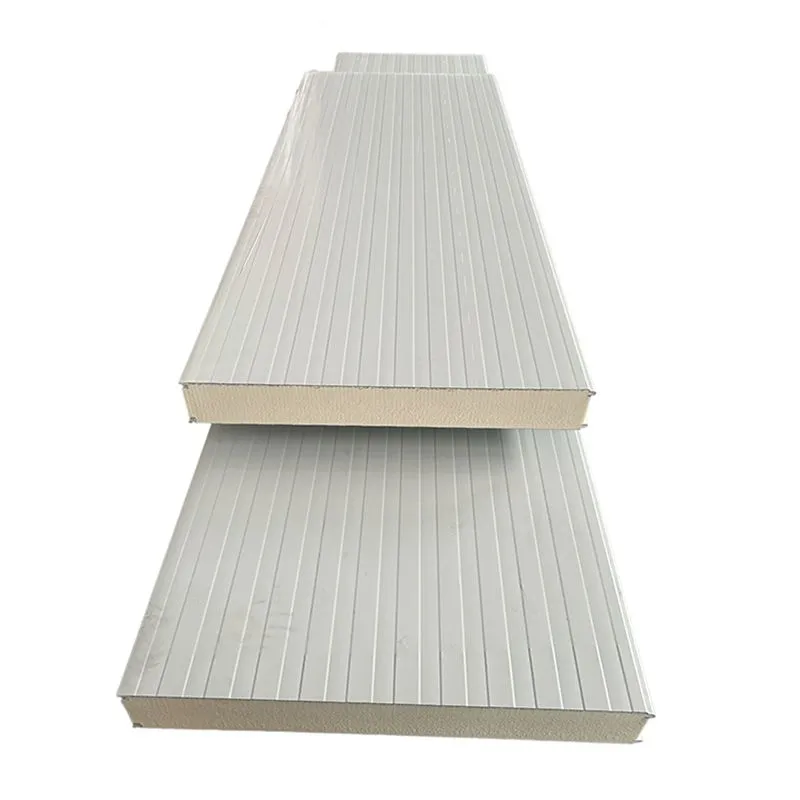

Slip Joint Panel
The specially designed edges ensure perfect interlocking and airtight sealing between panels, making them ideal for cold storage room applications.
Both the inner and outer skins feature a lightly ribbed finish, and the coating options include polyester, PVDF, silicone, plastisol, as well as antibacterial or food-safe finishes.
Specifications
Wall Sandwich Panel – FAQ
Yes. Rockwool core wall panels meet stringent fire safety standards, making them suitable for high-risk environments.
Yes, we offer flat, corrugated, and micro-ribbed finishes to match your architectural style or project needs.
Thanks to high insulation values, our panels reduce HVAC loads and improve energy efficiency significantly.
Definitely. SAAP panels are engineered for flexible orientation depending on design, wind load, and aesthetic preference.
They combine insulation, structural rigidity, and finishing in one layer—speeding up installation and reducing material costs.
